Prosilica GT
Prosilica GT: GigE Vision cameras in a fanless, passively cooled housing, up to 31 MP, with PoE, PTP and a wide choice of lens mounts.
Prosilica GT is Allied Vision's GigE camera series for harsh operating conditions. The precision-machined 6061 aluminium housing is fanless and passively cooled, and the camera monitors its own temperature. Depending on the model, lens mounts range from CS- and C-Mount to F, EF, M42, M58 and TFL, including planarity-adjusted (PA) versions.
It is used where large sensors, changing light and wide temperature swings come together, such as outdoor and traffic imaging or high-resolution inspection of large parts. An electronic lens control option adapts to varying light and working distances. The CCD-based GT models were discontinued in 2024; current models use CMOS sensors.
Key features
- GigE Vision with PoE, Trigger over Ethernet and IEEE 1588 PTP
- Up to 31 MP and up to 53 fps
- Global shutter CMOS sensors from Sony, ON Semi and CMOSIS/ams; monochrome, colour and NIR
- Fanless, passively cooled 6061 aluminium housing with temperature monitoring
- Wide choice of lens mounts including C, CS, F, EF, M42, M58 and TFL; electronic lens control
- Extensive I/O including RS232
Applications
Technical details
- Interface
- GigE Vision, PoE, IEEE 1588 PTP
- Max. resolution
- 31 MP
- Max. frame rate
- 53 fps
- Shutter
- Global shutter
- Lens mount
- C, CS, F, EF, M42, M58, TFL
Product information is compiled from the manufacturers' published documents and is for guidance only. Contact us for model selection, current specifications and pricing.
Other series in this group
Alvium U
Alvium U: USB3 Vision industrial camera with up to 24.6 MP and up to 688 fps, for PC-based and embedded vision systems.
Alvium G1
Alvium G1: compact GigE Vision camera with PoE, a 41 × 29 × 29 mm housing and up to 24.6 MP, rated for −20 °C to +65 °C.
Alvium G5
Alvium G5: 5GigE Vision camera with 4.2 times the bandwidth of GigE, 20 Sony IMX sensor options, up to 24.6 MP and up to 688 fps.

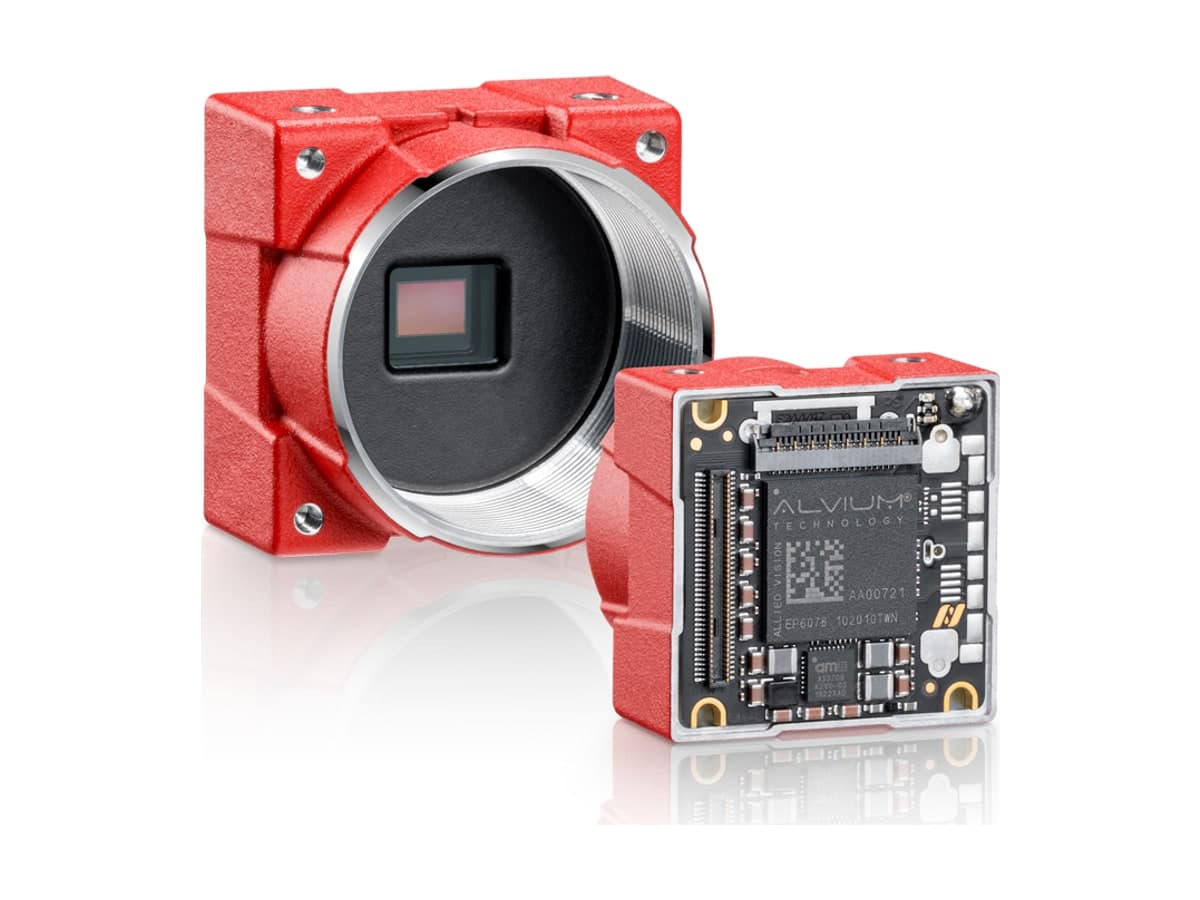

Alvium C
Alvium C: MIPI CSI-2 cameras with up to 24.6 MP for embedded vision on NVIDIA Jetson, NXP i.MX 8M Plus and AMD Xilinx boards.
Let us assess your application together
We test your sample in our laboratory and report on resolution, optics and lighting selection.
