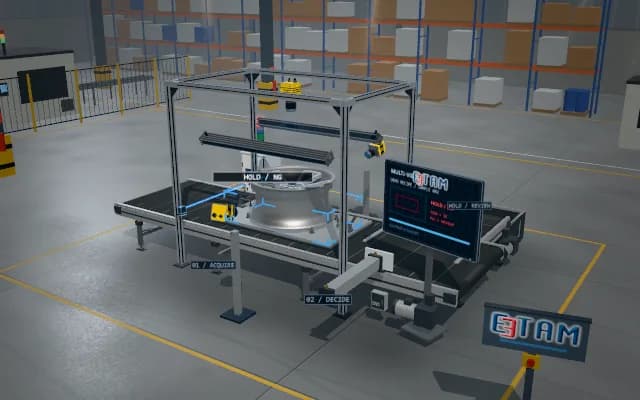

Twin-wheel identification using top and side evidence
Cast wheels arrive at random angles and may share almost identical top faces. A decision made without observing side-flange or width differences can assign the wrong product identity.
Proposed output: product identity, top/side evidence used and review reason. Acceptance limits require sample tests; this scene does not measure classification performance.
- 01 Presentation
- 02 Trigger and reference
- 03 Image / profile
- 04 Decision
- 05 Evidence and PLC
Centre the wheel
- Sample record
- —
- Evidence consistency
- —
- Acquisition progress
- —
Scenes are illustrative simulations; they are not customer references or performance guarantees.
Solution approach
After centring, match the top image independently of rotation and narrow geometric candidates using AI classification. Fuse side-profile evidence for similar candidates. Route insufficient evidence to an unknown or ambiguous state for operator review.
Process steps
- 01
Presentation
Centre the wheel
- 02
Trigger and reference
Extract top-face candidates
- 03
Image / profile
Compare side profiles
- 04
Decision
Hold uncertainty at the decision gate
- 05
Evidence and PLC
Record the evidenced identity
